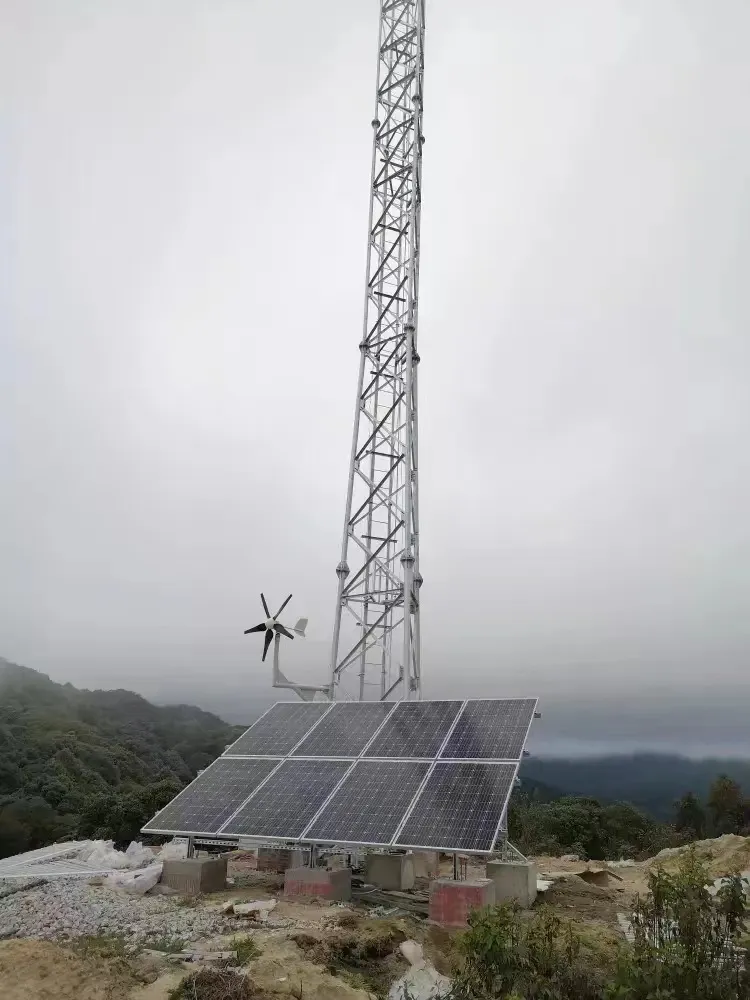

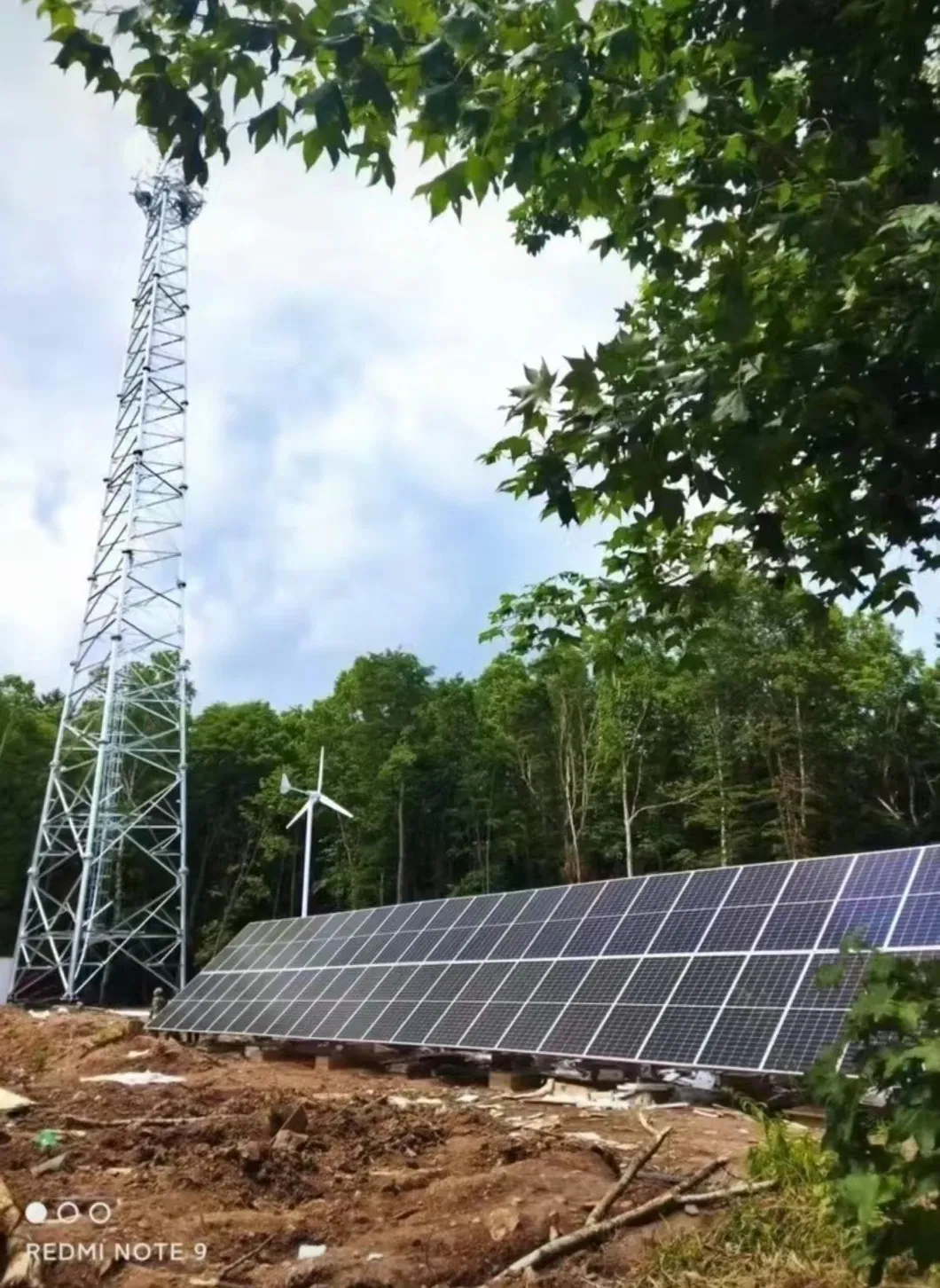

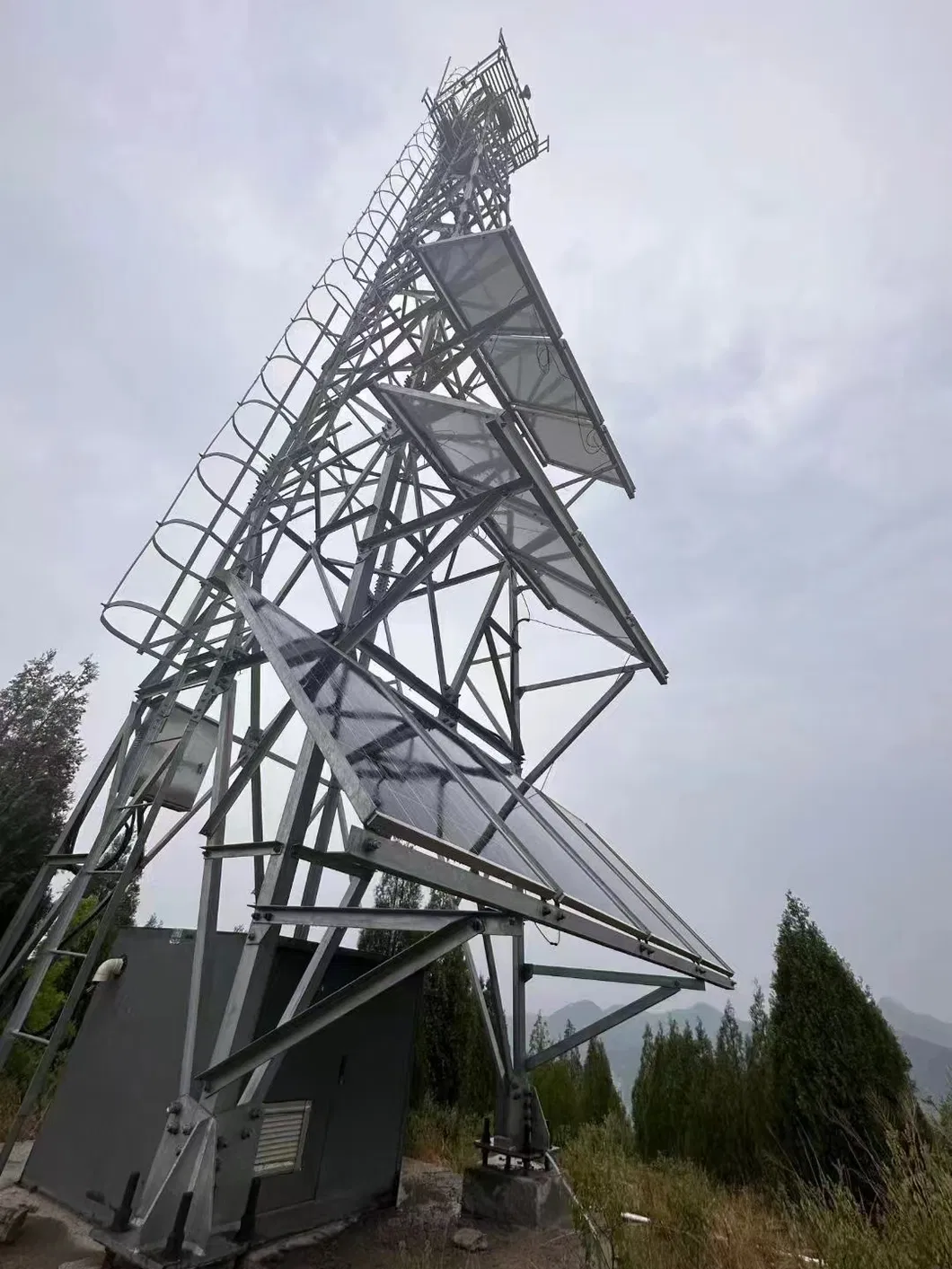

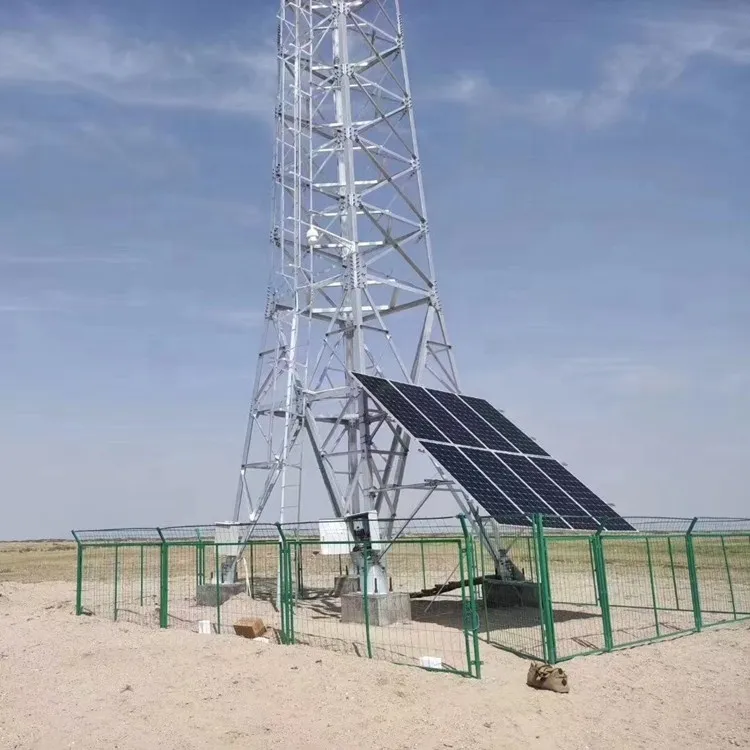

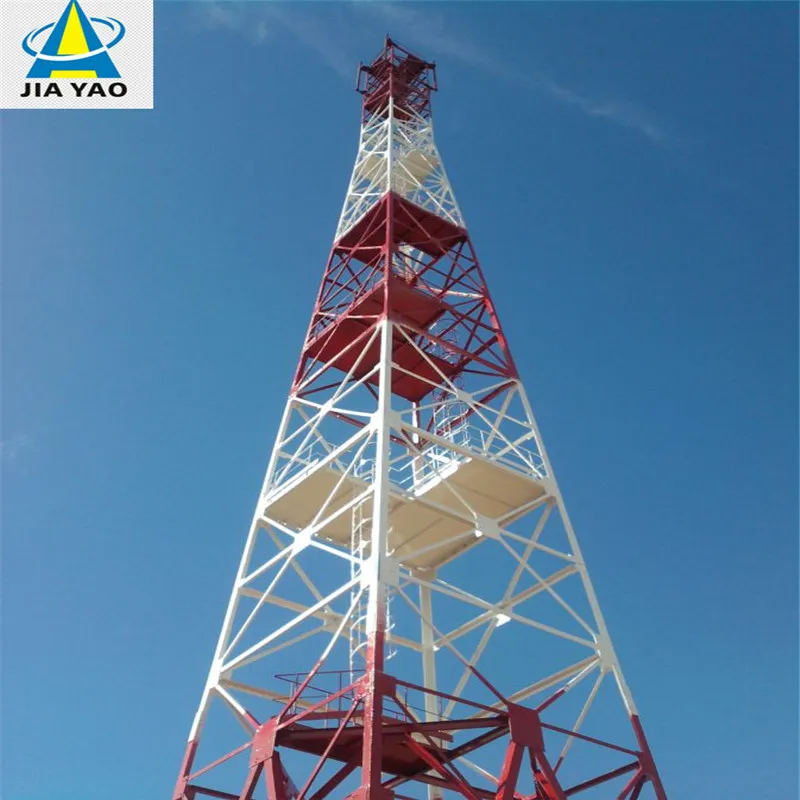

Solar Powered Antenna Tower Self Supporting Galvanized 20 30 40M 4G 5G Off Grid Telecom Mast

Name: Solar Powered Antenna Tower Self Supporting Galvanized 20 30 40M 4G 5G Off Grid Telecom Mast
Brand: Jiayao
Price: 4 USD

Buy cheap Solar Powered Antenna Tower Self Supporting Galvanized 20 30 40M 4G 5G Off Grid Telecom Mast product

Brand Name : Jiayao

Model Number : 4 Legged Angular Steel Tower

Certification : ISO 9001:2008 COC

Place of Origin : China

MOQ : 4 Tons

Price : >=4 Tons,US$1600;>=100 Tons,US$1000

Payment Terms : L/C, T/T

Supply Ability : 100 tons per month

Delivery Time : 15 Days

Packaging Details : 20GP Or 40HQ

Name : Solar Powered Antenna Tower Self Supporting Galvanized 20 30 40M 4G 5G Off Grid Telecom Mast

Design Standard : ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1

Wind Speed Resistance : ≥60M/S

Material : Angle Steel Q235 Q355 Q420 ASTM A36 A572 Gr50

Galvanization Standard : ASTM A123/ ISO 1461

CERTIFICATE : ISO 9001:2008 COC

Lifetime : More than 20 Years

Installation : Bolted Connection

Corrosionresistance : High, due to galvanization or protective coating

Origin : China

Steelgrade : Q235 or Q345 (commonly used steel grades)

Basetype : Concrete Foundation

Numberoflegs : 4

Tower Type : Self-supporting

Installation Time : Shorter than traditional lattice towers

Installationmethod : Bolted Assembly

Galvanization : Hot-dip galvanized

Heightrange : 10m to 60m

Standardcompliance : Meets Industry Standards

Customization : Available upon request

Platform Load : Customizable

Installation Method : Ground-based or Foundation-based

Foundation Type : Concrete Base or Anchor Bolts

Contact Now

Solar Powered Antenna Tower Self Supporting Galvanized 20 30 40M 4G 5G Off Grid Telecom Mast

Please Click Here For More Information!!!

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum

Used for Telecom Tower

What is 4 Leg Angle Steel TelecomTower?

Please Click Here For More Information!!!

Support Customization

Please Click Here For More Information!!!

Welcome to JIAYAO! JIAYAO CO.,LTD. is a professional telecom tower manufacturer and approved by ISO 9001.we can supply OEM/ODM Manufacturing. JIAYAO has been qualified by SGS classification as well as we have our own import and export license,our products such as angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower have been exported to USA, Europe and other 55 different counties. It's only two hours' drive from Shijiazhuang airport to JIAYAO.
